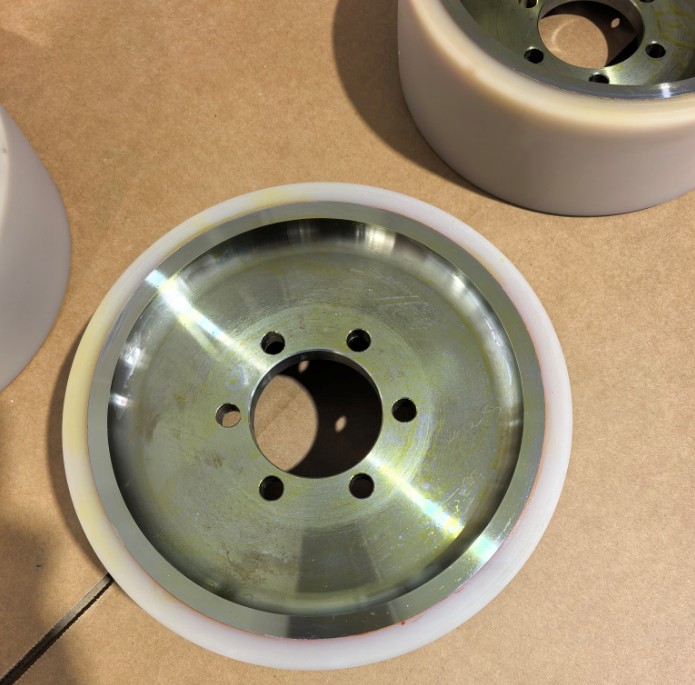

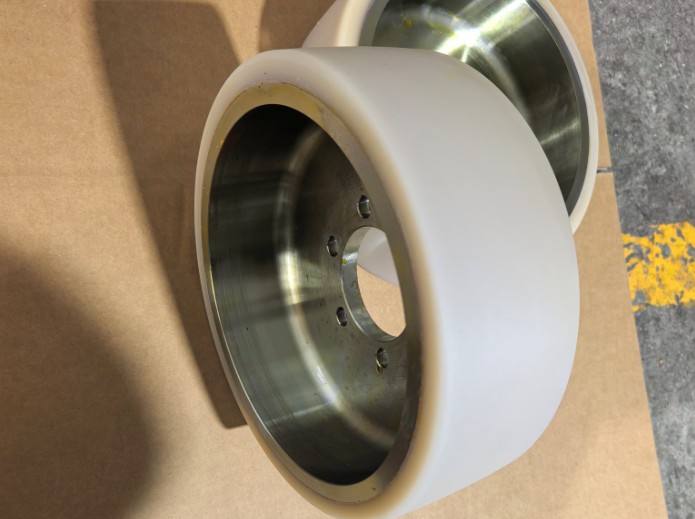

Vulkollan Load Wheels for Automated Guided Vehicles (AGVs)

Vulkollan is a high performance polyurethane elastomer material synthesized from the NDI reaction system. It features exceptional mechanical strength and dynamic load-bearing capacity. Vulkollan coated AGV load wheels are mainly used to support vehicle weight and ensure stable operation. As essential components of AGV driving wheels and driven wheel systems, they are widely applied in high precision handling scenarios including warehouse logistics, automobile manufacturing, semiconductor industry and cleanroom environments.

Performance Advantages of Vulkollan Material

• Excellent dynamic load capacity, with single wheel load up to 2 tons, suitable for long-term operation of heavy duty AGVs.

• Low hysteresis loss, which effectively reduces heat accumulation during operation, lowers energy consumption and improves AGV battery endurance.

• Outstanding cut resistance and tear resistance, greatly extending service life.

• Stable performance under extreme temperatures, adaptable to harsh environments such as cold storage and high temperature workshops.

• Superior elasticity and damping properties, effectively reducing vibration and noise and improving AGV operation precision.

Structural Design & Customization of Vulkollan AGV Load Wheels

Wheel Structure

• Tread material: Vulkollan polyurethane

• Hub material: Cast iron / Steel / Aluminum alloy

• Connection methods: Keyway connection / Flange connection

Optional Configurations

• Anti-static tread

• Hydrolysis resistant formula (suitable for high humidity environments)

• Variable hardness options (75 - 95 Shore A)

• Custom surface texture for enhanced traction

Size Range

• Wheel diameter: φ80 mm - φ500 mm

• Width: Customized according to load requirements and equipment design

AGV Load Wheel Selection Reference

Why Choose Vulkollan AGV Load Wheels

• Reduce downtime risks

• Improve transportation efficiency

• Minimize maintenance costs

• Extend equipment service life

We specialize in customized AGV wheel solutions, supporting flexible designs in various specifications, load ratings and application environments to meet the demands of intelligent manufacturing, automated logistics and high-end industrial fields. Click to contact us for professional selection guidance and product quotations.
