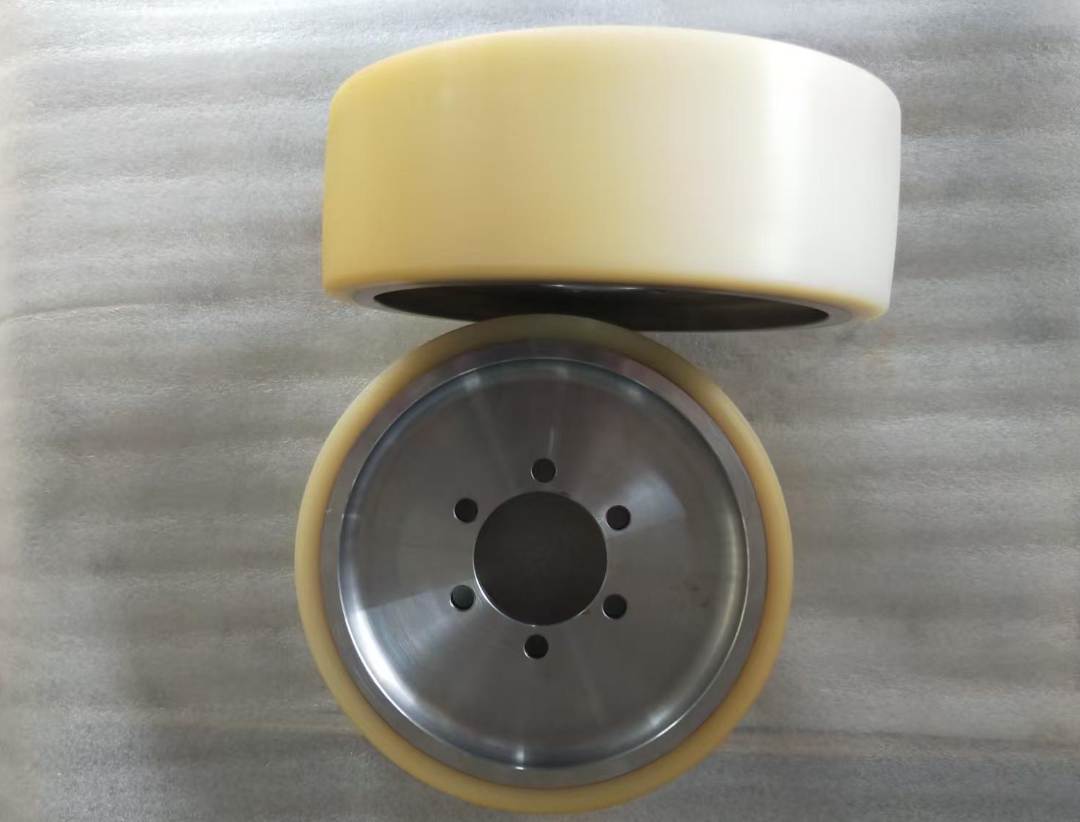

AGV Non-Marking Polyurethane Wheel Coating

High Performance Core Drive Components for Industrial Automation Handling

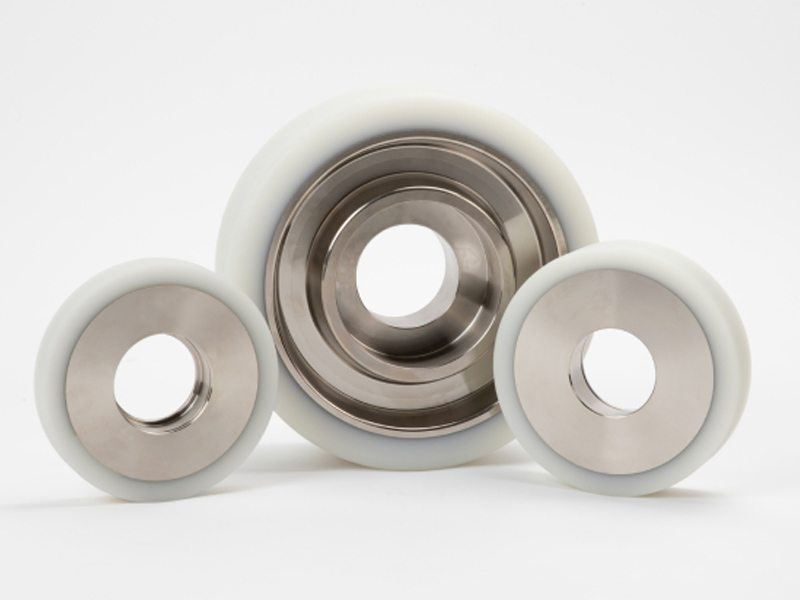

AGV polyurethane wheels are specially designed for modern automated logistics systems and intelligent handling equipment. Constructed with composite structure of high strength polyurethane elastomer and metal wheel core, they deliver outstanding wear resistance, low rolling resistance and excellent floor protection. Widely applied in AGVs, AMR robots, automated warehousing systems and high cleanliness industrial environments, they are ideal solution to improve the balance and support of AGV chassis.

AGV non-marking polyurethane wheels are manufactured via advanced casting molding technology, firmly bonding premium polyurethane materials with steel or aluminum alloy cores to form high strength integrated structure. Their key advantage is stable performance even under high loads and long-term continuous operation, while causing no scratches or contamination to epoxy floors, PVC floors or concrete floors.

Non-Marking Technology Implementation

By using high performance polyurethane materials free of carbon black, the wheels eliminate color transfer and residue at the source. The optimized hardness and elasticity reduce the generation of friction particles, while low rolling resistance surface treatment and high precision core design ensure uniform load distribution and minimize abnormal wear. When combined with clean floor conditions and proper operating parameters, this enables truly non-marking, contamination-free and stable AGV operation.

Structural Design and Manufacturing Process

• High strength steel or aluminum alloy wheel core

• High performance cast polyurethane coating

• Precision bearing system

• Delamination-resistant bonding technology

Advanced vacuum casting and high temperature curing are adopted to achieve molecular-level bonding between polyurethane and the metal wheel core, greatly extending service life and operational stability.

Performance Advantages: Stability, Efficiency and Non-Marking Operation

• Special polyurethane formulations prevent black marks or particle shedding during long-term use, suitable for high cleanliness environments.

• Optimized molecular structure and elastic modulus reduce energy loss and lower the load on AGV drive systems.

• High-density polyurethane layer combined with robust metal wheel core withstands frequent start-stop impacts and long-term heavy duty operation.

• Polyurethane provides excellent shock absorption, effectively dampening vibration and impact during movement.

Technical Parameters (Customizable)

Quality Control and Reliability Assurance

• Dynamic load testing

• Wear resistance testing

• Bonding strength testing

• High and low temperature cycling tests

• Long-term fatigue operation testing

With excellent non-marking floor protection, high load capacity, low rolling resistance and long service life, AGV non-marking polyurethane wheels have become key drive components in intelligent logistics and automated handling systems. Click here to contact our engineering team for professional customized solutions and product quotations.
