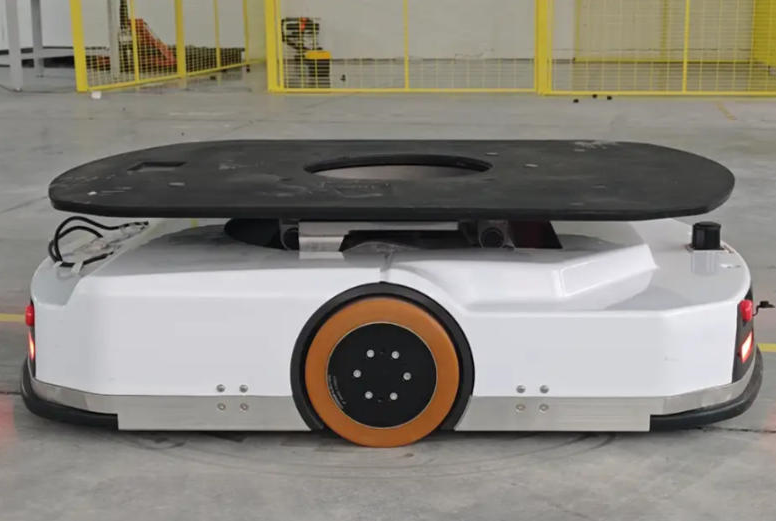

Pallet Handling AMR Load Bearing Wheels

With the rapid development of intelligent warehousing and automated logistics, the load wheels of pallet handling AMRs, as core components of the mobile robot chassis system, directly affect the operational stability, load capacity and service life of the entire machine. We specialize in providing high-strength, wear-resistant and low-noise polyurethane load wheel solutions for pallet handling AMRs to meet various load ratings and working conditions.

Functional Positioning of Polyurethane Load Bearing Wheels in Pallet Handling AMRs

• Support static and dynamic loads of the robot and palletized goods

• Maintain body balance during high-speed start-stop, turning and slope operation

• Absorb shock and vibration from uneven ground, protecting on-board sensors and cargo

• Reduce rolling resistance, improve energy efficiency and battery life

Compatible with Various Chassis Structures

• Fixed installation

• Swing support structure

• Universal load-bearing system

Why Polyurethane Wheels for Pallet Handling AMRs

• Polyurethane with Shore hardness of 85A - 95A resists deformation under heavy loads and can withstand concentrated loads of 1 - 3 tons for long periods.

• With a rolling resistance coefficient as low as 0.015 - 0.025, it saves more than 15% energy compared with traditional rubber wheels, significantly extending battery life.

• Operating noise is ≤62 dB, and it leaves no black marks on precision floors such as epoxy and PVC flooring, making it ideal for cleanrooms in pharmaceutical, electronics and food industries.

• Wear resistance is 3 - 5 times that of natural rubber, with a service life of over 50,000 km, greatly reducing maintenance costs.

• Maintain stable performance even in oily, wet or dusty environments, adapting to complex working conditions such as automobile factories, cold chain warehouses and e-commerce sorting centers.

Core Structure of Pallet Handling AMR Load Wheels

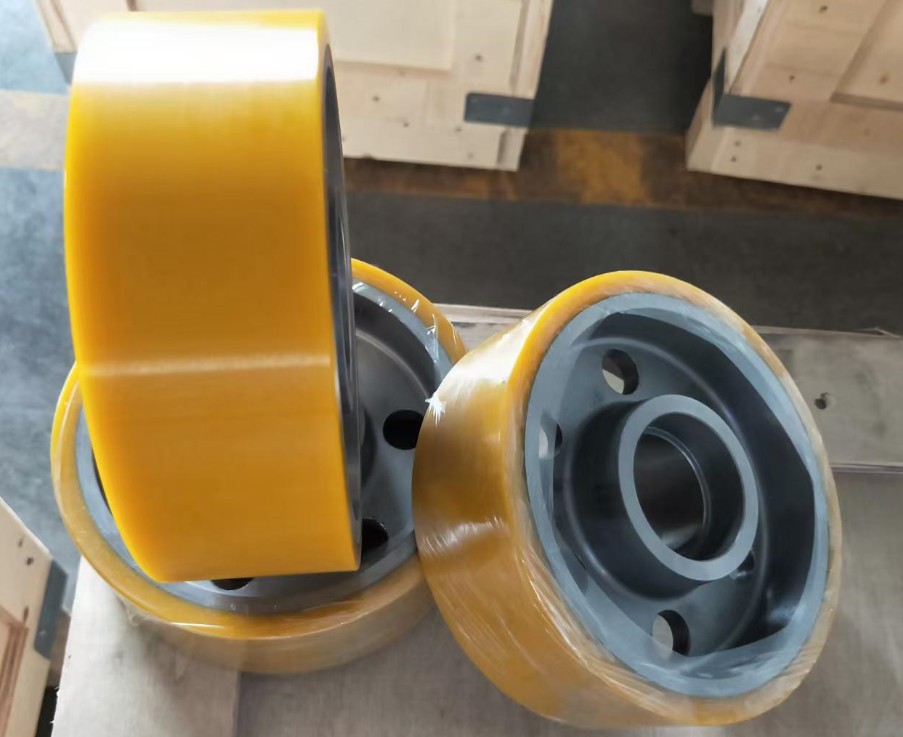

Polyurethane Tread

• Produced by centrifugal casting or compression molding vulcanization to ensure a seamless bond with the wheel core.

• Customizable herringbone, diamond or smooth tread patterns to meet anti-slip requirements for various floors.

• Supports special formulations for low temperature, antistatic, antibacterial and other applications.

High-Precision Bearing System

• Spindle: Double-row angular contact ball bearings to withstand combined radial and axial loads.

• Slewing mechanism: Thrust ball bearings or crossed roller bearings for smooth 360° steering.

• IP65 sealing for effective dust and water protection.

High-Strength Wheel Frame

• Aluminum alloy wheel frame: Lightweight design, suitable for medium and light-load AMRs.

• Ductile cast iron / cast steel wheel frame: For heavy-duty or outdoor applications with high impact resistance.

• Modular quick-mount interface for fast replacement.

If you are looking for high performance load wheel solutions for pallet handling robots, please contact us for professional selection advice and customized services.
