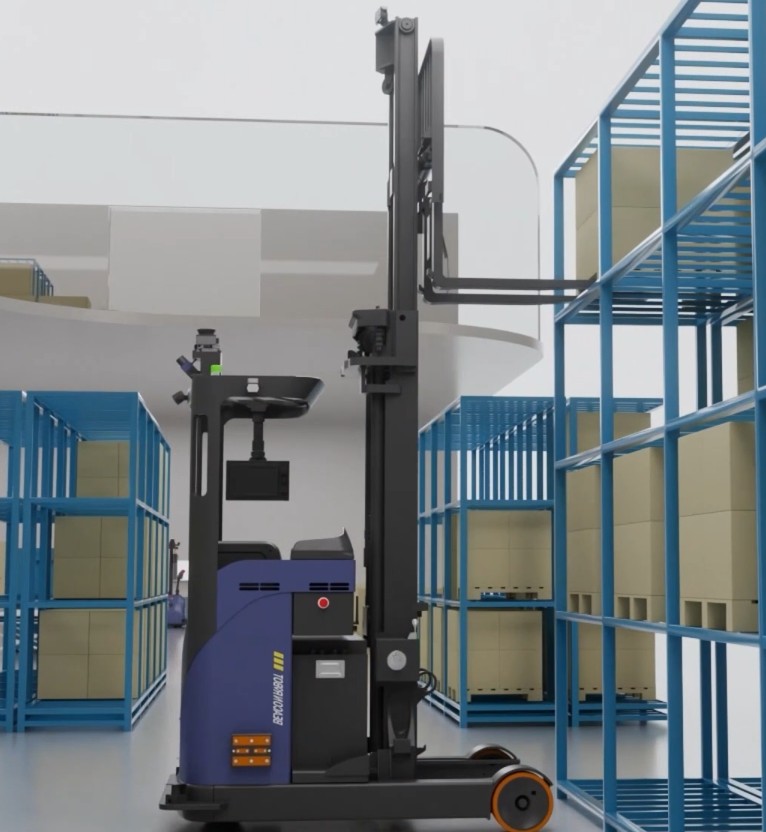

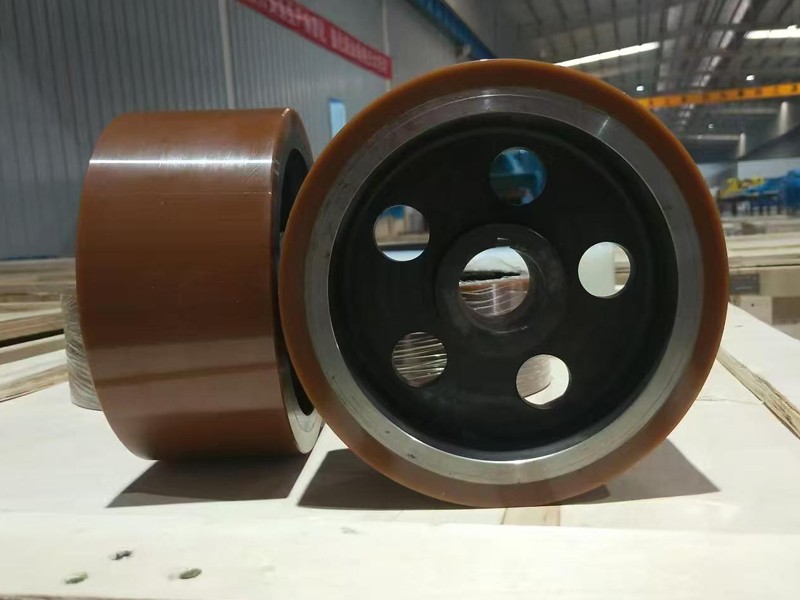

Polyurethane Travel Wheels for AGV Stackers

In automated warehousing and intelligent logistics systems, AGV stackers travel wheels are industrial drive or load-bearing wheels manufactured with polyurethane tread and high-strength metal wheel cores. Featuring high load-bearing capacity, low noise, high wear resistance and stable operation, they are the preferred wheel type for warehouse handling equipment, automated stacking systems and production workshops.

Features of AGV Stackers Polyurethane Travel Wheels

• High-quality polyurethane material significantly reduces wear rate and extends the service life of wheel assemblies.

• Low operating noise effectively improves the working environment in warehouses.

• Polyurethane elasticity absorbs shocks, enhancing the positioning accuracy of AGVs and the stability of material handling.

• Gentle on warehouse floor surfaces such as epoxy floors and emery floors, leaving no scratches or indentations.

• Paired with high-strength metal wheel cores to meet the requirements of heavy-load AGV stackers.

• Wheel diameter, width, hardness and mounting flanges can be customized according to working conditions.

Common Technical Parameters (Customizable)

• Tread material: Polyurethane

• Wheel core material: Aluminum / Steel wheel core

• Common wheel diameters: 80mm / 100mm / 125mm / 150mm (customizable)

• Common wheel widths: 30mm - 100mm

• Hardness range: Shore A 70 - 95

• Rated load: 100kg - 20000kg

• Operating temperature: -20°C - +80°C

How to Select the Suitable AGV Stacker Wheel

• Determine the total load and load distribution of the wheel bearings.

• Evaluate the floor material and hardness.

• Analyze the working environment and temperature.

• Confirm the operating speed and start-stop frequency.

• Check if low-noise performance is required.

Our Services and Customization Capabilities

KUNFENG has complete capabilities for the design and mass production of polyurethane wheels: we have strict quality inspection processes covering material formula development, wheel core structure design, as well as wear and fatigue testing. We support small-batch sample testing and mass supply, provide technical support and rapid delivery capabilities to help clients shorten lead times.
